Epilog Fusion Pro 36
Login to View Price
Introducing the new Epilog Fusion Pro. 5G acceleration and 165 IPS engraving speeds provide the fastest engraving in the industry. And the IRIS™ Camera Positioning system allows you to precisely place your artwork on screen in seconds.
- Fusion Pro 32: 32” x 20” (812 x 508 mm) work area
- Fusion Pro 48: 48” x 36” (1219 x 914 mm) work area
- Wattages:
- CO2: 50, 60, 80, or 120 watts
- Fiber: 30 or 50 watts
- Dual: Configure your laser with both CO2 and Fiber sources
Features: Benefits of Epilog’s Fusion Pro Laser System
The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:

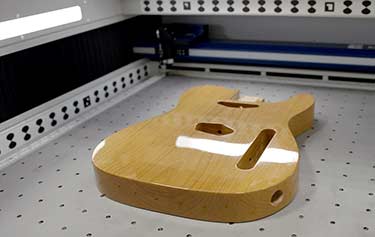

Highest-Speed Engraving Over Largest Work Area
The Fusion Pro’s 165 IPS engraving speed and 5G acceleration combine to provide the fastest engraving in the industry.

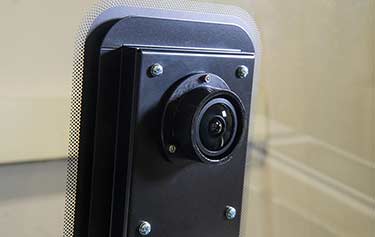

IRIS™ Camera Positioning
Overhead cameras provide an accurate picture of the working area for accurate artwork placement. Drag and drop your artwork on screen for the fastest work processing.

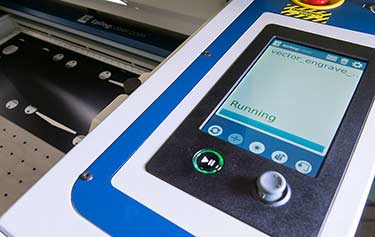

Touch Screen at the Laser
Select between jobs, auto focus the laser, and rerun jobs at the touch of a button from the easy-to-use touch screen interface right at the laser.
Engineered and Manufactured in the USA
Proudly designed, engineered, and manufactured in our Golden, CO headquarters at the base of the Rocky Mountains.
Network Your Laser Across Your Business
The Fusion Pro features built-in Ethernet and USB options for networking your laser.
SAFEGUARD™ Features
Keep the mechanics of your laser machine cleaner than ever before with side enclosures, a fully covered x-axis assembly, and covered lens assembly.

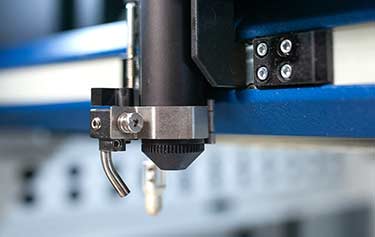

Air Assist and Compressor
The air assist removes heat and combustible gases from the cutting surface for a cleaner cut. A built-in air compressor provides air directly to the work surface.

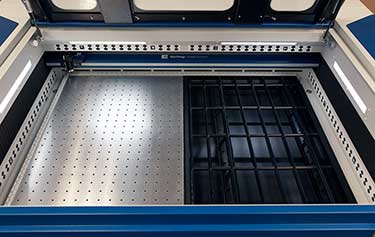

Split Table
On the Fusion Pro 48 mix and match your table across the bed with optional slat and gridded cutting tables.

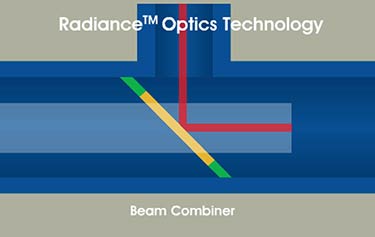

Radiance™ Beam Enhancing Optics
No additional, expensive lens package needed for the highest resolution engraving across the entire table.

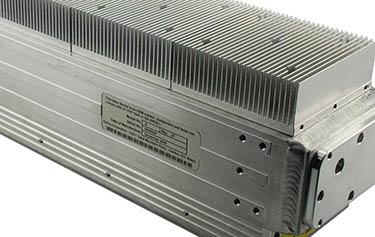

CO2 Waveguide Laser Tubes by Epilog
All-metal tube design provides higher beam quality and longer life with low recharge costs.
1 GB Memory in the Machine
Improve job management and data integrity with 1GB of RAM in both Fusion Pro systems. Save your most run jobs right at the laser.
Long-Life Steel Bearing
A dual block design provides the most rigidity and reduced vibration without the inevitable wobble and replacement of plastic bearings.
Accessories for the Fusion Pro Laser Machines

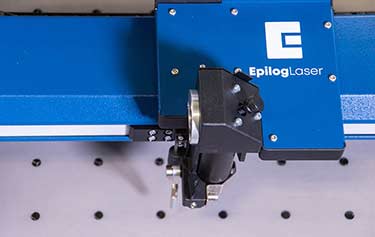

Dual Source Option: CO2 and Fiber
Are you looking for the material versatility of a CO2 laser in addition to the direct metal etching of a fiber laser? Add on the dual source option to your Fusion Pro by choosing both a CO2 laser (50, 60, or 80 watts) and a fiber laser (30 or 50 watts) to work with a wider range of materials.
(Coming Soon)
Rim-Style Rotary Attachment
Available for the Fusion Pro, the Rim-Style rotary attachment adds the ability to engrave bottles, glasses, flashlights, or any other cylindrical item. The Fusion Pro rotary attachment is as easy to setup as placing your product on the rotary, raising or lowering the scissor lift to level the engraving area, and printing to the laser.

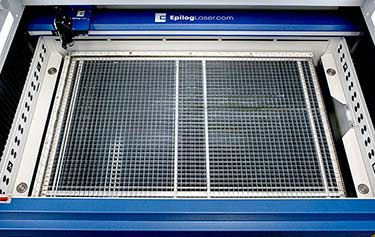

Vector Cutting Table (Grid-Style)
The optional grid-style vector cutting table is available for our Fusion Pro machines. Ideal for cutting applications, the vector grid limits how much of the surface area of your piece contacts the work table, reducing backside burning and providing greater air circulation while still accommodating smaller material stock.
Vector Cutting Table (Slat-Style)
Designed for larger pieces of material, the optional slat-style vector table greatly reduces the points of contact between the material you are cutting and the work table, significantly reducing backside burning and providing optimal airflow for the removal of dust and debris.
PhotoLaser Plus Software
PhotoLaser Plus takes photo engraving with your Epilog Fusion Series laser to the next level by easily processing photos for engraving on all types of materials. Epilog Laser has partnered with CADLink to bring you the industry’s best photo processing software: PhotoLaser Plus. The easy-to-use software interface and powerful photo processing tools allow you to create the highest-quality photo engravings in the industry.
Optional Lenses
4.0” Lens: Cutting Thicker Materials and Inside Deep Areas
The 4” lens produces a focused beam over a longer vertical distance, which makes it ideal when engraving within a recessed area of a product, such as inside a bowl or plate. The lens is also used for cutting through very thick materials.
Cutting Pin Table
The Pin Table incorporates movable pins that can be placed anywhere along the table’s grid of one inch (25.4 mm) spaced holes. The movable pins also allow the user to raise and support the cutting material in locations where the laser will not be cutting, providing a means of eliminating backside reflection. The table also allows you to place pins to support parts that would normally fall out of the cutting pattern. A handy removable surface plate makes the task of cleaning up small parts easy without removing the Pin Table.
Epilog Fusion Pro Technical Specifications
Technical Specifications
| Fusion Pro 32 | Fusion Pro 48 | |
|---|---|---|
| Work Area | 32” x 20” (812 x 508 mm) |
48” x 36” (1219 x 914 mm) |
| Maximum Z-Depth | 12.25” (311 mm) | 12.25” (311 mm) |
| Laser Tube Wattage | CO2 – 50, 60, 80, or 120 watt
Fiber – 30 or 50 watt
Dual Source – CO2 50, 60, 80, or 120 watt with Fiber 30 or 50 watt |
|
| Software | Epilog Laser Software Suite: Laser Dashboard™ & Epilog Job Manager™ | |
| Memory | Multiple files up to 1 GB. Engrave any file size. | |
| Operating Modes | Optimized Raster, Vector, and Combined modes | |
| Motion Control | High-speed, continuous-loop, brushless DC servo motors using rotary encoding technology for precise positioning | |
| X-Axis Bearings | Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity | |
| Belts | Advanced B-style double-wide Kevlar precision drive belts. | |
| Resolution | Fully-flexible and user-controlled from 75 – 1200 dpi | |
| Speed and Power | 165 IPS (4.2m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode. | |
| Print Interface | 10Base-T Ethernet, USB. Windows 7/8/10 compatible | |
| Size (W x D x H) | 54.6” x 34.2” x 42″ 1387 x 869 x 1067 mm |
70.6” x 51.3″ x 42.75″ 1794 x 1304 x 1086 mm Pedestal removed: 34” H (863 mm) |
| Weight | 400 lbs (182 kg) | 650 lbs (295 kg) |
| Electrical | 110 to 240 volts, 50 or 60 Hz, single phase | 240 volts, 50 or 60 Hz, single phase |
| Ventilation | One upper output port. One lower port. Total 735 CFM. | Two upper output ports. One lower port. Total 735 CFM. |
| Exhaust Ports | One output port 4” (102 mm) |
Two output ports 4” (102 mm) |
| Vacuum Table Port | Additional port for dedicated exhaust through table, 4” (102 mm) | |
| Safety | Class 2 Laser Product – 1 mW CW Maximum 600 – 700 nm | |
Epilog Fusion Pro CO2 Material Compatibility
CO2 Material Compatibility
| Engrave | Cut | |
|---|---|---|
| Wood，Acrylic, Fabric | x | x |
| Coated Metals, Glass | x | |
| Ceramic | x | |
| Delrin | x | x |
| Cloth | x | x |
| Leather | x | x |
| Marble | x | |
| Matte Board | x | x |
| Melamine | x | x |
| Mother of Pearl | x | x |
| Paper | x | x |
| Mylar | x | x |
| Pressboard | x | x |
| Rubber | x | x |
| Wood Veneer | x | x |
| Fiberglass | x | x |
| Painted Metals | x | |
| Tile | x | |
| Plastic | x | x |
| Cork | x | x |
| Corian | x | x |
| Anodized Aluminum | x | |
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metals | * | |
| * CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page. | ||
| Do you have a material you would like us to test? Our Applications Team would be happy to assist you. | ||
Epilog Fusion Pro Fiber Material Compatibility
Fiber Material Compatibility
With an Epilog Fiber laser, mark a wide array of metals and engineered plastics.
- 17-4 PH stainless steel
- 303 stainless
- 4043 steel
- 6061 Aluminum
- ABS (white/black)
- Aluminum, 6061
- Aluminum, yellow chromate
- Bayer 2807 Makrolon polycarbonate
- Bayers bayblend FR110
- Black/white ABS
- Black/white polycarbonate
- Brass
- Brushed aluminum
- Carbon nanotube
- Ceramics, metal-plated
- Clear coat anodized aluminum
- Cobalt chrome steel
- Colored delrin (black/brown)
- Compacted powder iron with phosphate coating
- Copper
- DAP – Diallyl Phthalate
- Delrin, colored (black/brown)
- GE Plastics polycarbonate resin 121-R
- Glass filled PEEK
- Glass filled Teflon
- Hard coat anodized aluminum
- Inconel metals (various)
- Machine tool steel
- Magnesium
- Metal-plated ceramics
- Molybdenum
- Nickel plated 1215 mild steel
- Nickel plated brass
- Nickel plated gold
- Nickel plated Kovar
- Nickel plated steel
- Nylon
- PEEK, white
- Polybutylene Terephthalate
- Polycarbonate (black/white)
- Polycarbonate resin 121-R, GE Plastics
- Polycarbonate, Bayer 2807 Makrolon
- Polysulphone
- Rynite PET
- Santoprene
- Silicon carbide
- Silicon steel
- Silicone wafers
- Stainless steel 303
- Stainless steel 17-4 PH
- Steel 4043
- Steel, machine tool
- Various inconel metals (nickel-chromium super alloys)
- White PEEK
- Yellow chromate aluminum
- Zinc plated mild steel
- And Many More!
